| The Aquacell water reclamation and reuse system |
| was developed in order to use treatment water discharged from sewage/wastewater treatment as recycled water. This water is then processed using the Aquacell media that is excellent in removing low concentration organic matter and SS in water. The special features include low facility and operation cost compared to other methods and 100% utilization of water flowing into the water reclamation and reuse system as recycled water. The Aquacell water reclamation and reuse system utilizes Aquacell media with large specific surface area and strong microorganism adhesion power to make it compact compared to other methods. Economical treatment is also possible for treatment facilities with large capacity. |
 Low facility and operation cost
100% of system inlet water used as recycled water
Compact facility
Effective in treating facilities with large capacity
|
 Special Features of Aquacell Water Reclamation and Reuse System |
 Low facility and operation cost compared to other methods
Small facility size allowed due to high organic matter and SS removal rate by using,
Aquacell media with large specific surface area and good SS filterability
Normal operation start time shortened because of high initial microorganism
adhesion speed
Easy secession of surplus adhered microorganisms because of low backwash water
Stable operation allowed after backwash because only surplus microorganisms
secede and the base microorganism remains adhered during backwash due to
strong microorganism adhesion power of Aquacell media
|
 |

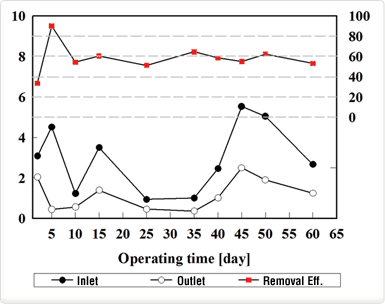

| Aquacell Water Reclamation and Reuse System Treatment Efficiency |
 |
85~95% BOD and SS removal
95% colon bacillus, odor, chromaticity and turbidity removal
50~60% nitrogen and phosphorus removal
|
|
| Aquacell Water Reclamation and Reuse System Application Area |
Large building (hotel/hospital/department store/office building) water reclamation and reuse system
Rainwater reuse system
Advanced sewage treatment system
|
| Aquacell Water Reclamation and Reuse System Installation Example |
 |
Busan Marriott Hotel (300 tons/day, operation started in August 2002) Saving 200,000 US
Dollars per year by using the Aquacell wastewater reclamation and reuse system
POSCO SS (1500ton/day, 2008.11operated)
Saving 300,00$/year by using The Aquacell wastewater reclamation and reuse system
|
|

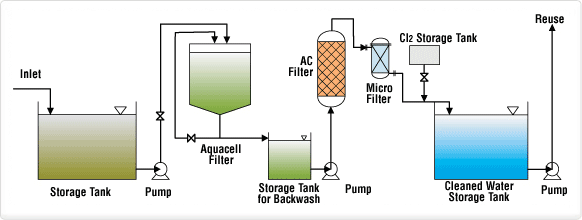

| Aquacell Water Reclamation and Reuse System Component |
 |
